3" Precision Ports

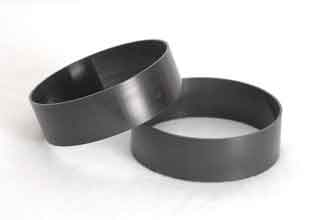

PSP-3RG - 3" connecting ring

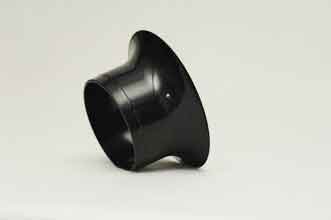

PSP-3IF - 3" x 2 1/2" inside flare without mounting flange. Overall length of flare is 3" of which only 2 1/2" is usable because of the flare.

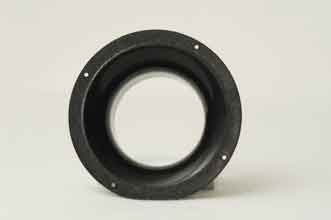

PSP-3OFH - 3" x 2 1/2" outside flare with mounting holes. Overall length of flare is 3" of which only 2 1/2" is usable because of the flare. Has 1/2" flat mounting flange for easy installation.
PSP-3OFH - 3" x 12" plastic tube

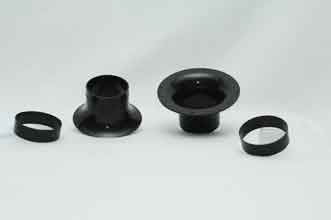

PSP3-BKH - 3" unit in excess of 5" that includes 1 outside flare with mounting holes, 1 inside flare, and 2 connecting rings. This is used in conjunction with our PSP3-BKT or one of our 3" carboard tubes when you need a Precision Port length of 6" or more.

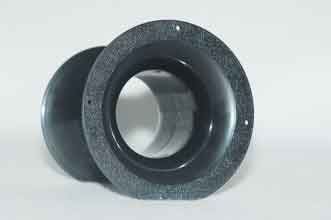

PSP3-BKH-5 - 3" x 5" unit that includes 1 outside flare with mounting holes,
1 inside falre, and 1 connecting ring. 6" overall length with only 5" usable because of flares on both ends.

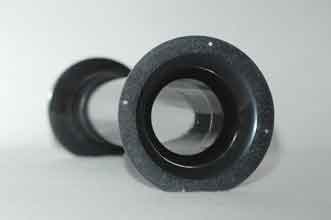

PSP3-BKHT - 3" x 17" unit that includes 1 outside flare with mounting holes,
1 inside flare, 2 connecting rings, and 1 plastic tube. 18" overall length with only 17" usable because of the flares on both ends.
